SHEET CUTTINGPRODUCT ID: HR-115

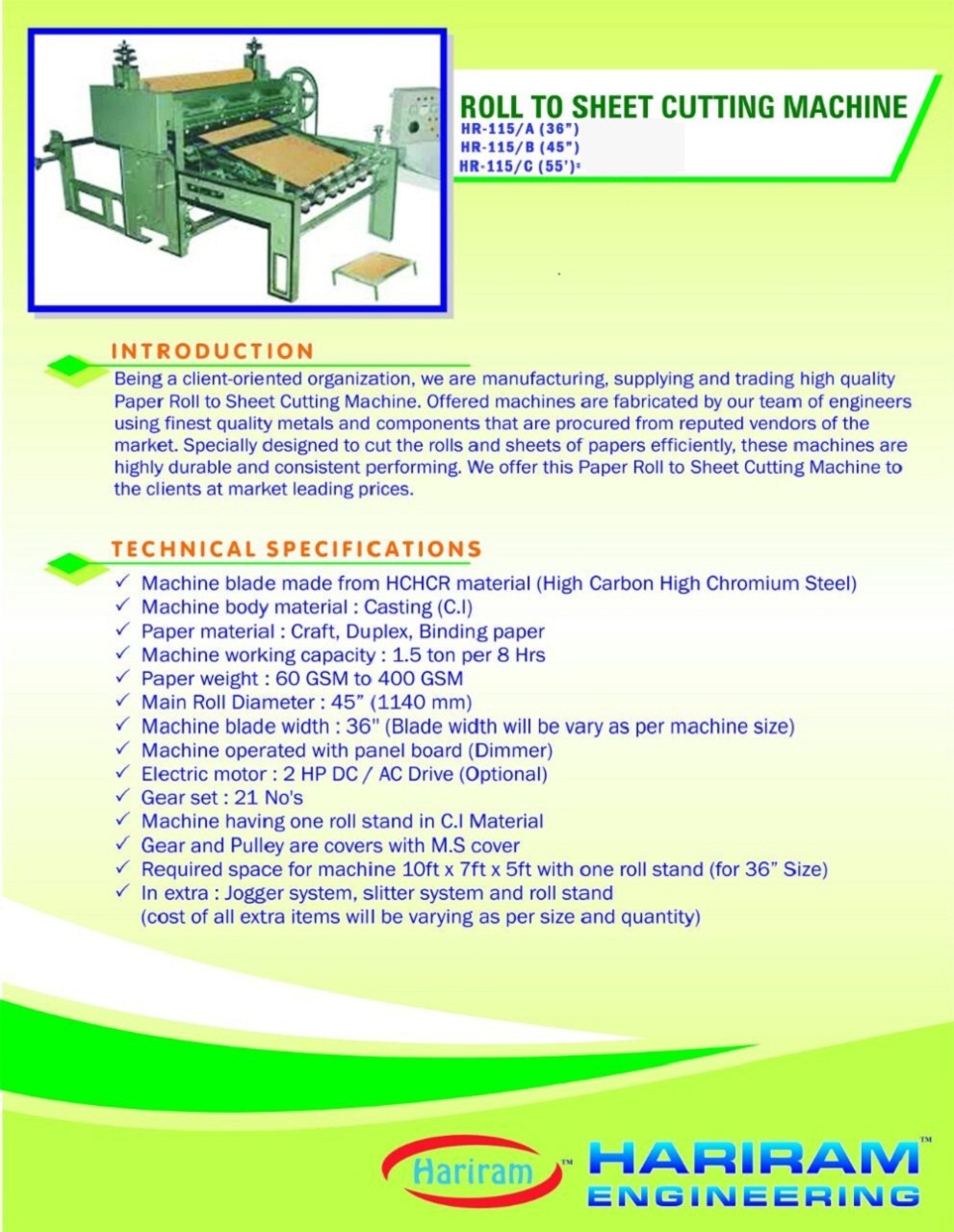

HR 115 Roll to Sheet Cutting Machine
Heavy-duty roll to sheet cutting machine for cutting craft, duplex, and binding paper into sheets. Available in 36", 45", and 55" blade width variants with optional add-ons.
Capacity
1.5 tons per 8 hours
Mechanism
Operated via Panel Board (Dimmer)
Warranty
1 Year Repair Warranty
Status
Ready to Ship
Specifications
Model NumbersHR-115/A (36"), HR-115/B (45"), HR-115/C (55")
Machine Working Capacity1.5 tons per 8 hours
Main Roll Diameter45" (1140 mm)
Blade Width36", 45", or 55"
Required Space10ft x 7ft x 5ft (36" model)
Paper Compatibility60–400 GSM (Craft, Duplex, Binding)
Blade MaterialHCHCR Steel
Body MaterialCasting (C.I)
Electric Motor2 HP DC / AC Drive (Optional)
Gear Set21 Numbers
Technical Features
- Machine Working Capacity: 1.5 tons per 8 hours
- Main Roll Diameter: 45" (1140 mm)
- Blade Width Options: 36", 45", 55"
- Paper Material: Craft, Duplex, and Binding paper
- Paper Weight: 60 GSM to 400 GSM
- Machine Blade Material: HCHCR (High Carbon High Chromium Steel)
- Machine Body Material: Casting (C.I)
- Includes one roll stand in C.I Material
- Safety Covers: Gear and pulley protected with M.S cover
- Optional Extras: Jogger system, slitter system, additional roll stands
